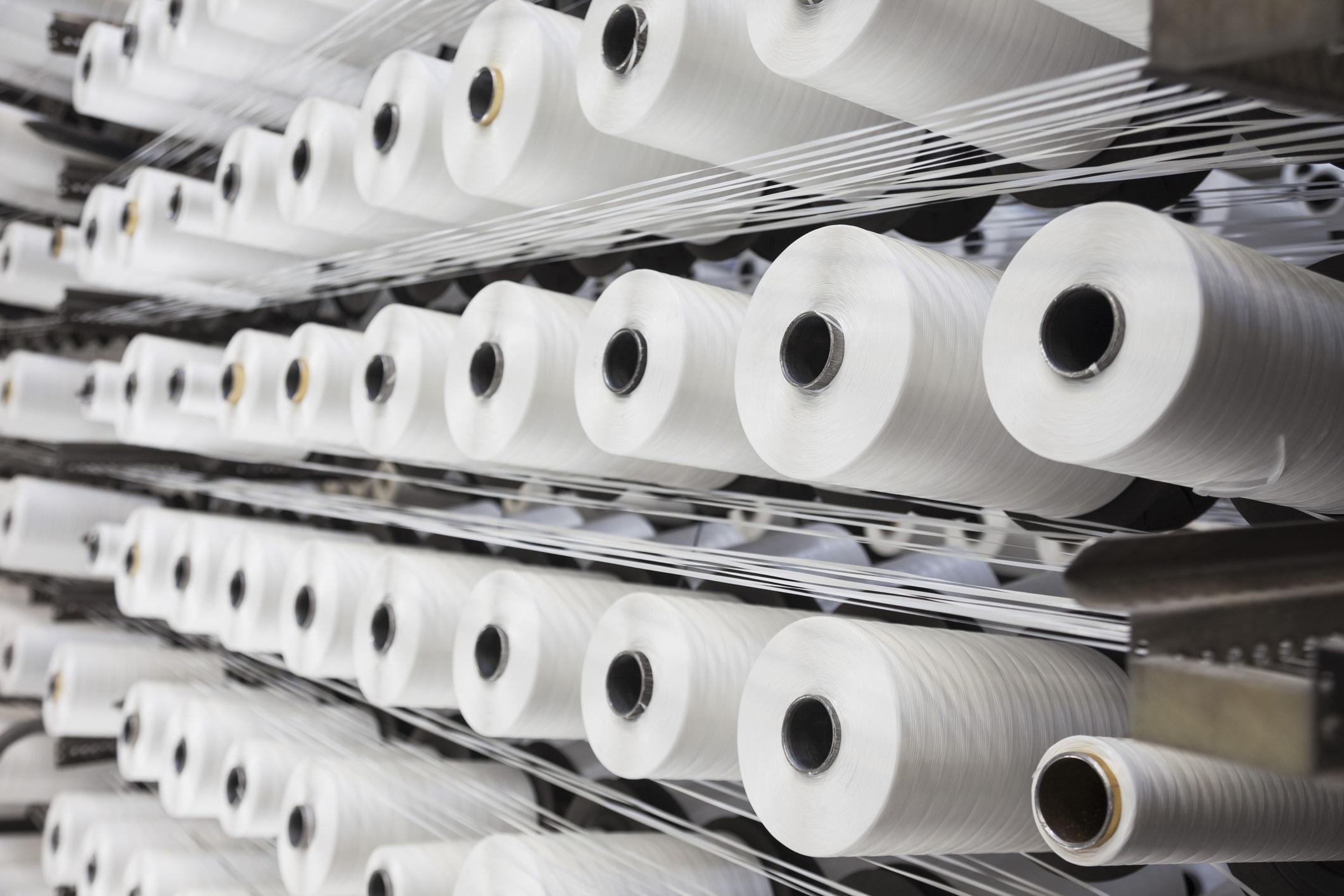

Synthetic fibres such as polyamide, polyester and nylon are sprayed with an oil-based coating (spin finish or OPU) to reduce static electricity and friction as well as enhance other physical characteristics. Determination of the coating levels is vital for optimising the manufacturing process.
Time Domain NMR (TD-NMR) is a clean, fast and accurate technique for the measurement of finish content and is a viable alternative to traditional wet chemical techniques which are time consuming, use hazardous chemicals and require skilled laboratory personnel. Furthermore, TD-NMR is capable of measuring finish levels below those accurately measurable by solvent extraction.
For high throughput of samples and greater control of your production.
Good repeatability enables accurate measurements at low concentrations.
Simple intuitive software, suitable for unskilled users, guides the operator through the analysis.
Users can carry out routine cleaning to ensure consistent results.
Industry accepted method
Used in 100s of factories world-wide. Allows rapid data collection for process optimisation (Design of Experiment), changes to and control of multiple lines.
Minimal sample preparation
Simply transfer the sample into a tube, weigh then analyse in seconds. It can be measured ‘as-is’ without any preparation.
Flexibility
The same instrument may be used to make a variety of measurements; an additional or different probe will be required to measure fluorinated coatings.
Accurate
NMR is a bulk measurement technique and so measures all of the oil on the sample.
No hazardous solvents or chemicals
The NMR method does not require solvents which are hazardous to use and costly to dispose of. In addition, it does not create high temperatures or pressures.
Non-destructive
The same sample may be measured repeatedly by NMR, but also analysed by other techniques.
Automation option
Automated analysis of up to 125 samples using the MQC+ with the MQ-Auto.
A range of probe sizes and associated sample sizes are available:
| MQC+ Model | Sample size (Diameter / Volume) | Options |
| Spin Finish Analyser, standard package | 18mm / 7ml | Long 18mm glass tubes |
| Long 18mm FEP tubes | ||
| Short 18mm FEP/PTFE cartridges | ||
| Spin Finish Analyser, advanced package | 26mm /14ml | Long 26mm glass tubes |
| Long 26mm FEP tubes | ||
| Short 26mm FEP/PTFE cartridges |

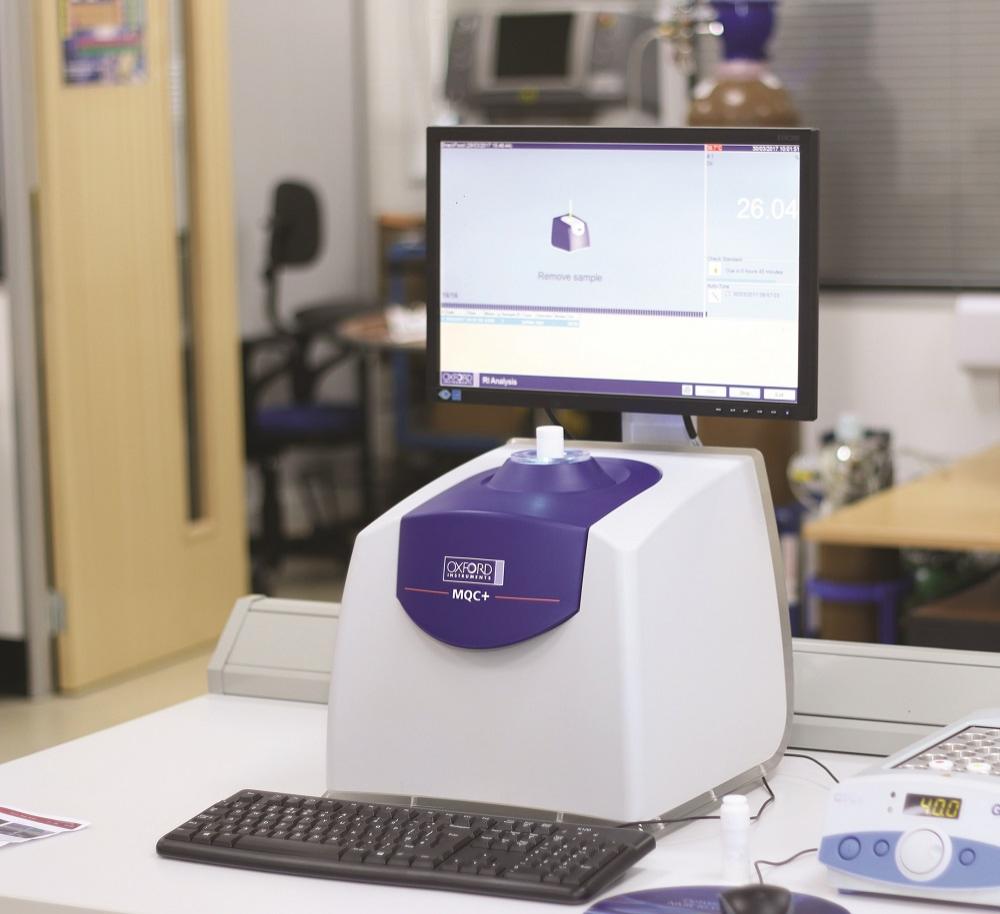

To increase laboratory productivity and efficiency, the MQC+ Spin Finish Analyser can be used with the MQ-Auto sample automation system. The MQ-Auto is based around a high-performance robot arm and a range of sample racks and conditioning stations. A balance is required for the weighing method, for which the bar code reader is strongly recommended for sample identification Watch the MQ-Auto in action.
A variety of holders are available for different sizes and types of sample (e.g. fibres, textiles, nonwovens), coatings (e.g. oil-, fluorine- and polymer-based) and other requirements (e.g. glass-free, automation); calibration maintenance samples are also available for oil-based coatings.
