MQC+ is the latest in a long line of fast accurate and easy-to-use analysers for the food, oilseeds, petroleum, polymers and other industries. Interchangeable probes allow applications to be optimised for sampling volume, signal-to-noise and/or solids detection. Internal diagnostics and modular design allow fast in-field servicing and repair,
View Brochure Request Pricing
TD‑NMR is well suited to QA/QC measurements as it replaces laborious wet chemistry methods and avoids the use of hazardous chemicals. The instrument is typically dedicated to one or more specific applications, ensuring consistent and reliable results. Its software is user‑friendly, requiring little training or prior experience, and methods are straightforward, often based on simple linear calibrations using only a few samples. In addition, the technique is non‑destructive, allowing samples to be preserved after analysis.
MQC+ Fat Analyser measures fat in a wide range of products, including:
MQC+ Solid Fat Analyser measures Solid Fat Content (SFC) of various edible oils and fats equilibrated at different temperatures to provide a melting profile (AOCS Cd 16b-93, ISO 8292-1:2008, IUPAC 2.150).
MQC+ Oilseed Analyser measures oil and water in seeds (ISO 10565) and residues after extraction (ISO 10632), providing value where:
MQC+ Large Seed Analyser is designed for bulk crop measurement, while the MQC+ Small Seed Analyser is ideal for research-scale samples.
MQC+ Spin Finish Analyser delivers fast, clean, and accurate measurement of spin finish on fibre—also known as Oil Pick-Up (OPU), Finish on Yarn (FOY), or Lubricant on Thread (LOT). These oil-based coatings reduce static, minimise friction, and improve fibre performance.
Accurate coating measurement is also critical for optimising textile and nonwoven manufacturing. In addition, MQC+ measures:
MQC+ Analyser provides fast, non-destructive measurement of key composition parameters, supporting quality control and material performance assessment across a wide range of applications.
MQC+ Analyser provides fast, non-destructive measurement of key composition parameters across minerals, pharmaceuticals, and industrial materials, supporting quality control, process optimisation and compliance.

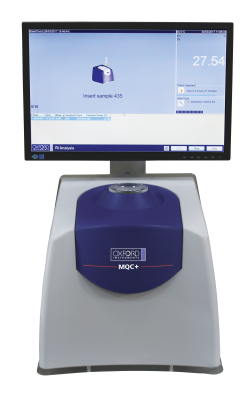

MQC+ is a compact benchtop Nuclear Magnetic Resonance (NMR) analyser available in three models: MQC+23, MQC+5, and MQC+F. The MQC+23 is designed for small samples and high-sensitivity applications, such as measuring trace oil on artificial fibres and fabrics. The MQC+5 is suited to larger samples, typically agricultural products, measuring oil and moisture in oilseeds. The MQC+F measures fluorine in toothpaste and minerals.
It supports a range of robust sample holders (probes) for different applications and sizes, which can be swapped in minutes. Each system includes all required software and sampling accessories, with optional lab equipment such as dry heaters, water baths, balances, and autosamplers also available.
NMR signals originate from the entire sample volume, not just the surface. This enables reliable and accurate measurements, even for opaque or heterogeneous materials.
NMR analysis leaves the sample completely unchanged, allowing repeat measurements, long-term storage, or further analysis using complementary techniques if required.
TD‑NMR requires no solvents or reagents, eliminating chemical hazards, reducing regulatory burden, and removing the need for fume hoods, specialist handling, or waste disposal.
Calibration is straightforward, requiring only a small number of reference samples that span the expected concentration range for robust and reliable quantification.
Sample handling is simple: transfer into a tube, allow temperature equilibration, and analyse. Grinding, dissolution, or complex pre-treatment steps are usually unnecessary.
Measurements are completed in seconds to minutes, enabling high sample throughput and fast decision-making in routine QA/QC laboratory environments.
Rapid, non‑destructive TD‑NMR analysis using MQC+ enables accurate measurement of oil, moisture, fat and solid fat content across agriculture and food applications. This supports robust quality control, process optimisation, and consistent performance of raw materials and finished products throughout the food chain.
MQC+ delivers fast, non‑destructive NMR measurements for textile applications, enabling accurate control of spin finish, lubricant, rubber/latex and fluorinated coatings. It helps manufacturers optimise processes, ensure product consistency, and maintain quality across fibres, yarns, nonwovens and finished textiles.
Fast, non‑destructive TD-NMR analysis using MQC+ supports petrochemical applications by providing reliable measurements of hydrogen content, wax content (in distillates) and oil content (in waxes). This enables effective quality assurance, process control, and product consistency across fuels and other refinery products.
Non‑destructive TD‑NMR analysis with MQC+ supports polymer applications by measuring composition, crystallinity, cross-link density and filler content. It enables rapid quality control, process optimisation, and consistent performance across raw materials, intermediates, and finished polymer products.
Thousands of users worldwide benefit from the fast, accurate measurements of MQC and MQC+ NMR analysers. Productivity is further enhanced by MQ-Auto, a robotic system that extends MQC+ operating time.
MQ-Auto is ideal for high-throughput or long-measurement applications, freeing technicians for other tasks. It features a high-performance robotic arm, configurable sample racks, and conditioning stations tailored to each application. Optional balance and barcode integration support weighing, while the software enables multiple calibrations and allows runs to pause for additional samples.
| Sample racks | 18mm (8ml) sample tubes | 26mm (14ml) sample tubes |
| Room temperature racks (maximum 4) | Maximum 50 per rack* | Maximum 32 per rack* |
| Heated blocks (maximum 4) | Maximum 24 per block* | Maximum 18 per block* |
*A position must be reserved for the tuning sample
